Current position→◇ L=135mdouble flyover bridge aa spiral	★ Back to catalogue★
	◎（technical parameters）

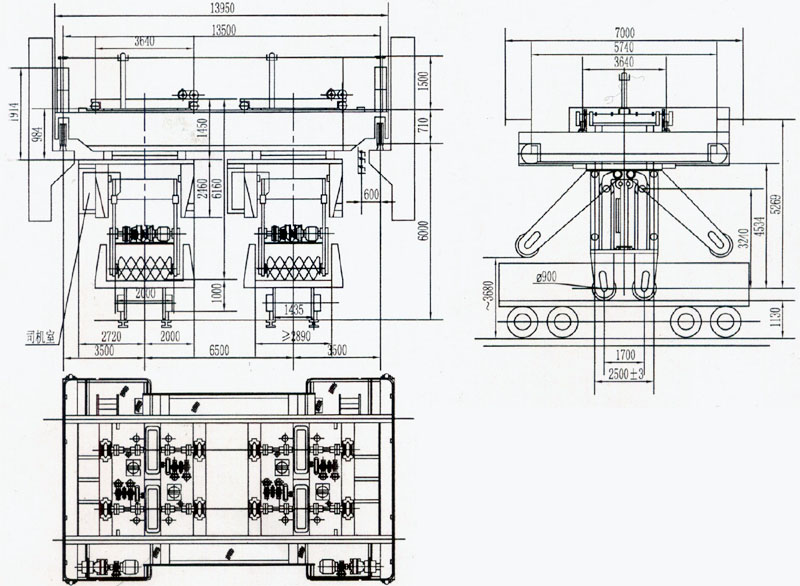

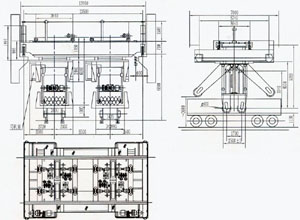

（click for zoom-in） Machinery features and technical criterion table 1   Cart running Running speed 0.3 m/s rail distance 13500 mm Wheel diameter  500 mm Tread 5740 mm Motor Type YZB160L-6 Power 5.5x2 KW Rotation speed  1000 rpm Decelerator type ZQ400 speed ratio 43 Detent  type YWZ200/25 hydraulic pressure pusherY11-25 trig torque 20 kg.m Maximum wheel pressure 8.9 T                 journey switch  type LX10-12 quantity   2 dolly running Running speed 0.23 m/s rail distance 3640 mm Wheel diameter  400 mm tread 3640 mm Motor Type YZR160L-6 Power 5.5 KW Rotation speed  960 rpm Decelerator Type ZQ35-31.5-VI-X speed ratio 30.75 Detent  Type YWZ200/25 hydraulic pressure pusherYT1-25 trig torque 20 kg.m open-aa teeth number modulus 5 T   teeth number 94/46     speed ratio 2.04   journey switch type LX10-12 quantity   2 spiral rise and fall raise the speed 0.22 m/s raise the height 2600 mm Motor Type     Power     rotation speed     Decelerator Type     Power     Detent rotation speed YWZ200/25 hydraulic pressure pusheYT1-25 trig torque 20 kg.m chain wheel  step 228.3 mm teeth number  14   chain Type TG508(single row） step 50.8 mm rolling step  28.58 mm journey switch Type LX10-12 quantity 2

7	LC02-2-7	tow line bracket assembly	1	Component
6	LC02-2-6	Brush assembly	1	Component
5	LC02-2-5	Spiral rotation assembly	2	Component
4	LC02-2-4	Hoist mechanism assembly	1	Component
3	LC02-2-3	Block roller cradle assembly	1	Component
2	LC02-2-2	Dolly assembly	1	Component
1	LC02-2-1	Cart assembly	1	Component
